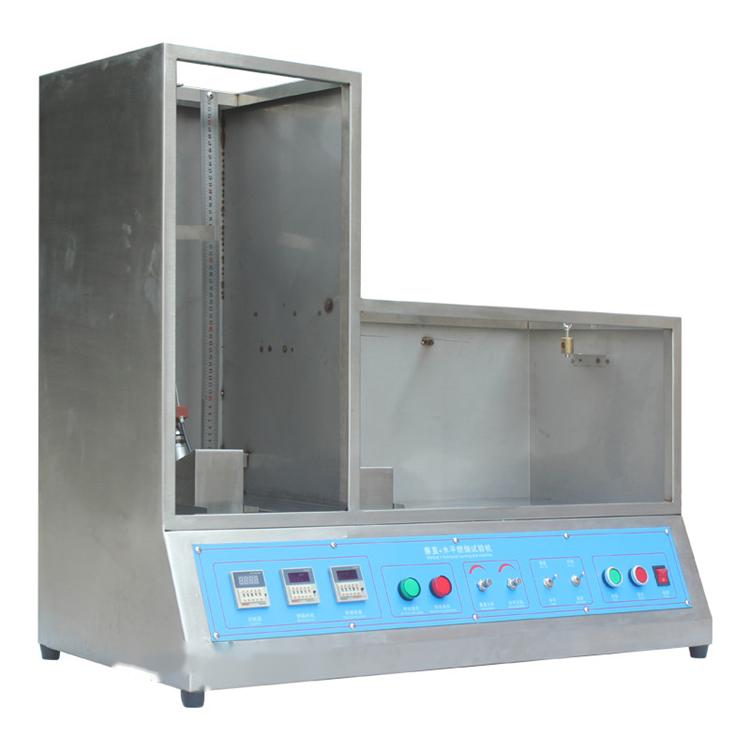

Automatic burning test machine/Vertical + horizontal burning test machine

1.Test standards Burning Test Machine : VW-1ofUL1581.UL13.UL444.UL1655 and FT-1 of CSA .

2.Application for Burning Test Machine :

Suitable for the combustion resistancetest of variouswire and cable insulation coating materials, printed circuit board materials , ICinsulatorsandother organic materials . During the test , the test piece is placed on the topof theflame,burned for 15 seconds , extinguished for 15 seconds , repeated 5 times, and thentheburningcondition of the test piece is checked . The burning and extinguishing time andthenumberofrepetitions can be set , and it can be operated automatically.

Vertical burning box	internal dimensions are 305*355*610mm（UL1581 standardsize）
Horizontal burning box	internal dimensions are 305*355*610mm（UL1581standardsize）
Counter	0～9999×100 times
Timer	2 groups,0～99.99 seconds
Vertical spark nozzle	nozzle angle is 20℃, with a gas control valve.
Horizontal spark nozzle	nozzle angle is 90℃ , with a gas control valve.
Fuel	gas . methane (provided by the customer)
Vertical or horizontal nozzle selection mode.
Select manual / automatic mode.
When the preset data is reached, the machine will automatically stop testing
Weight	58kg
Power	AC220V 50HZ
