How to produce spiral armored optical cable?

What is spiral armored optical cable?

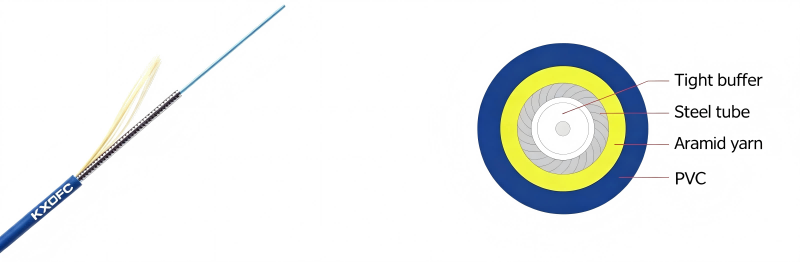

A high-strength optical cable in which a spiral metal sheath (such as a stainless steel or aluminum alloy spiral tube) is wrapped around the outside of the optical fiber or inner sheath.

Feature:

1. Superior Pressure Resistance: The spiral metal armor can withstand strong lateral pressure and trampling, preventing the internal optical fibers from being crushed.

2. Rodent Protection: The robust metal layer effectively prevents rats or other rodents from gnawing on the cable, reducing the line failure rate.

3. Flexibility: The spiral structure design allows the optical cable to maintain excellent bending performance, making installation and wiring flexible and convenient.

4. High Tensile Strength: Often combined with reinforcing elements such as aramid yarn, it can withstand significant tensile strain.

5. Wide Environmental Adaptability: The outer sheath is often made of flame-retardant or high-temperature resistant materials (such as PVC, LSZH), making it suitable for harsh indoor and outdoor environments.

How to produce spiral armored optical cable?

Base on this structure, production process refer to the following :

1. Fiber coloring (WRK-1800 fiber coloring and rewinding machine)

Mainly applied for coloring the surface of optic fibers, convenient to identify the multi-fibers within the loose tube. Also can be used to rewind optic-fibers.

2. Tight buffer fiber extrusion (WRK-30 tight buffer fiber extrusion line)

Suitable for 0.6mm/0.9mm tight buffered fiber,the production material PVC、LSZH.

3. Spiral armored produce(including steel flatten machine, produce spiral strip armouring machine)

It is used to produce spiral steel tape armoring cable.

4. Sheath extrusion(WRK-50 simplex and duplex optical cable production line)

Applied in production of simplex/duplex and other soft optical cable, the extrusion material is PVC/LSZH. The extruded sheath possesses the features of even diameter, smooth, fast speed.
