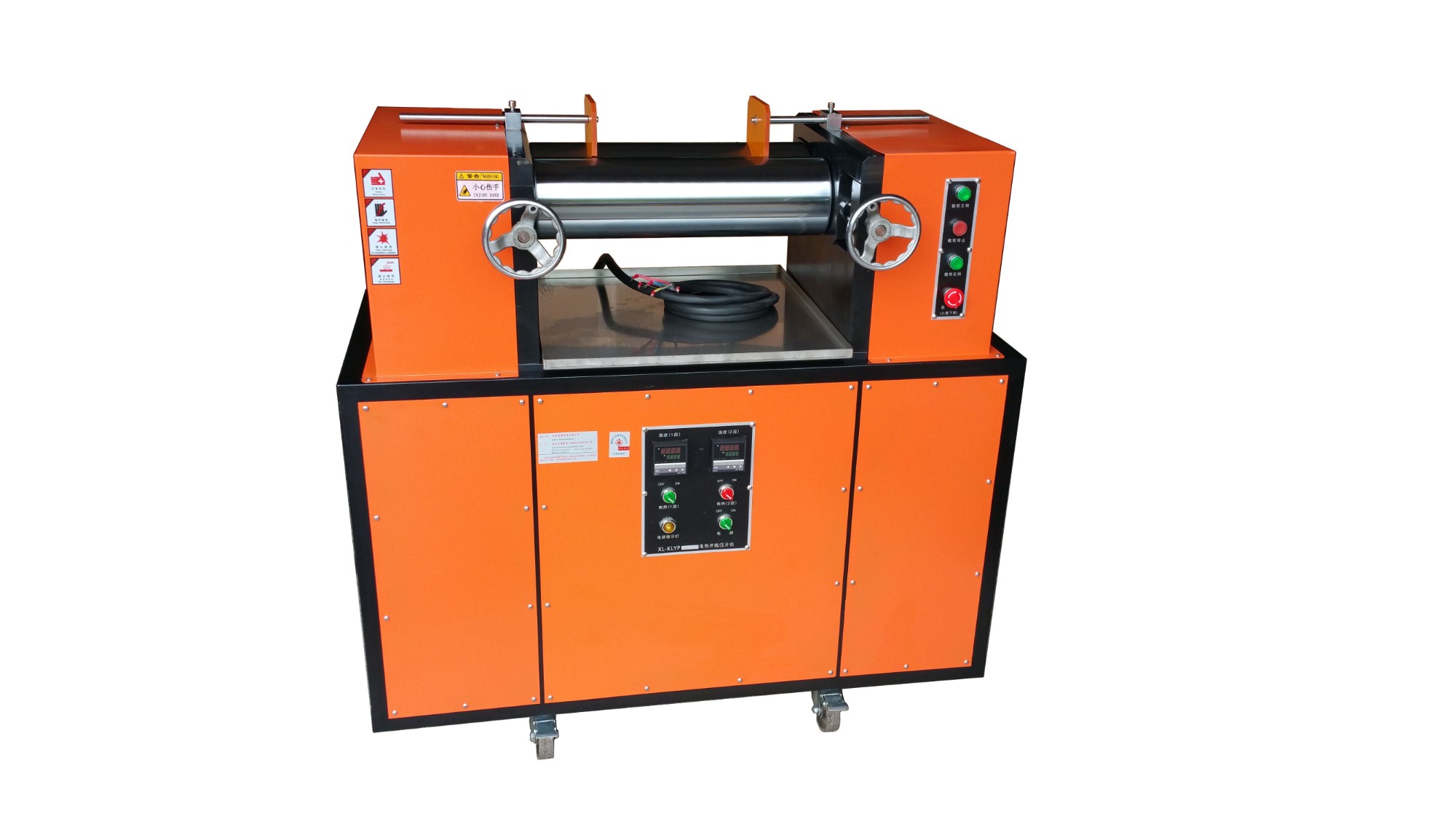

Two Roll Rubber Mixing Mill

1） this machine for rubber and plastic industry manufacturers and scientific research units for raw rubber plastication, rubber and compound mixing, heat of mixing rubber refining and dumbbell specimen of tablet, also can be used for plastic mixing experiment.

2）The machine is composed of transmission device, main engine, roller, roll distance adjusting device, emergency stop brake device, bottom natural exhaust device, electric heating device and electric control. Motor direct connection speed reducer, the shaft after the small sprocket drive roller on the big sprocket, again by the dynamic gear ratio on the other end of the roller belt on the front roller speed ratio of the gear, roller before and after pushing in the opposite direction of rotation.

3）roller has Positive and negative function and independent heating function

4）The machine is equipped with the emergency stop button , and press the stop as soon as it is in danger.

5）In the process of pressure, roller surface need  hard chromium treatment, can not use metal spatula (need bamboo system), lest damage its surface.

Model specifications	XL-KLYP1	XL-KLYP2	XL-KLYP4
Mixing capacity	0.5 ~ 1 KG	0.5 ~ 1 KG	About 0.5 ~ 10 KG
Roll diameter	110±2mm	121±2mm	163±1mm
Inter-roll adjustment distance	0 ~ 3 mm adjustable	0~ 5 mm adjustable	0 ~ 10 mm adjustable
Heating method	Electric heating，2.5KW X 2 groups heat core	Electric heating，3KW X 2 groups heat core	Electric heating，about 3KW X 2 groups heat core
Roller temperature	RT to 250℃ ± 5.5℃, the digital display temperature, adjustable, two roller   temperature control. Heating: normal  temperature ~ 200℃ (rubber), heating:   normal  temperature ~ 250℃ (plastic);		RT to 350℃ ± 12.5℃(static), digital display, adjustable.   Rubber heating, normal temperature ~ 250℃; Plastic heating,   normal temperature ~ 270℃.
Roller speed	About 20 revolutions/min, fixed speed; Positive &negative		About 18-20 revolutions/min,fixed speed
Roller ratio	1 ：1	1 ：1	1 ：1
Gear motor	220V/AC,1HP,1420r/min，40K：1；		380V/AC,3HP,1350~1420r/min
Dimension	750×350×930mm	810×410×1300mm	About 1380＊1400＊800mm
Power	220V	220V	three-phase,AC 380V / 6000W
Weight	About 180KG	About 200 KG	About 2.0T
Note: can be customized according to customer requirements.
