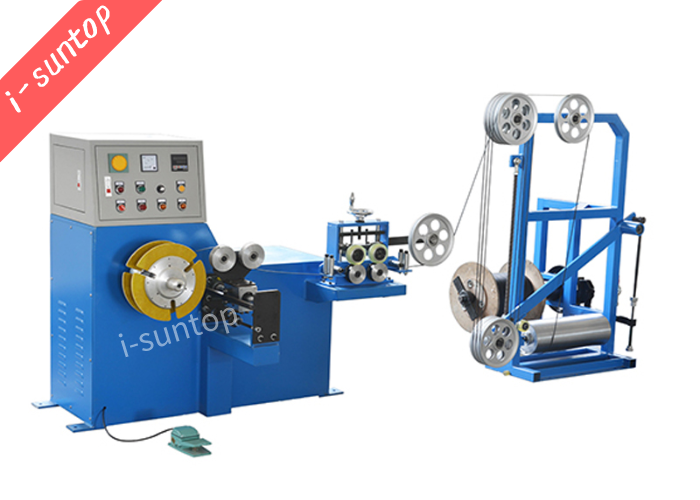

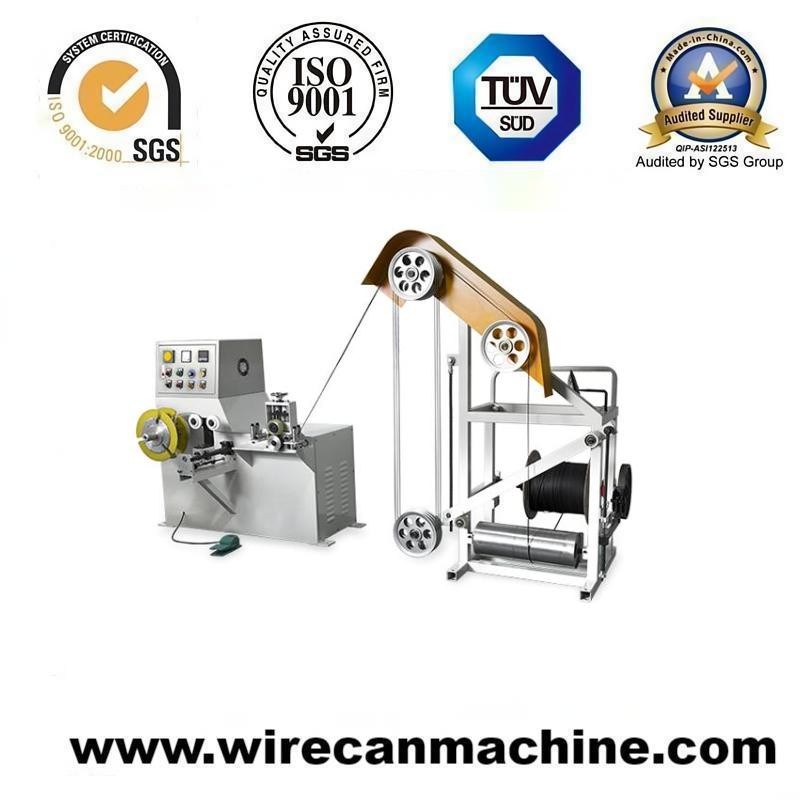

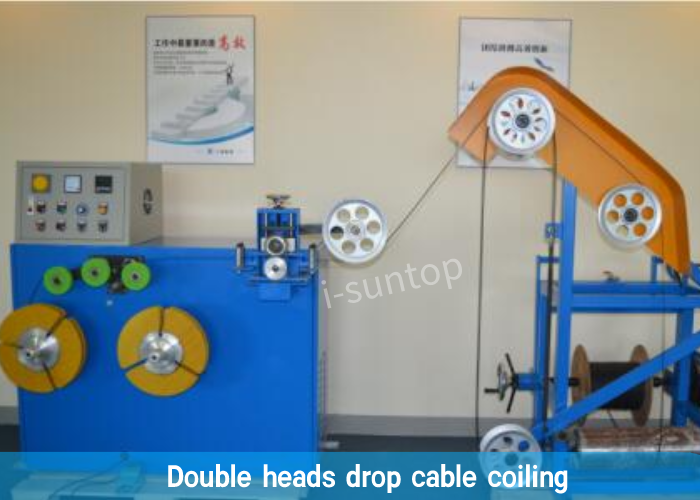

FTTH Drop Cable Coiling and Rewinding Machine

High-speed heavy-duty FTTH drop cable cutting machine is suitable for looping, meter counting and binding of the ftth drop cable, butterfly cable, 12 core cable, etc. The equipment has the advantages of high production efficiency, good cable arrangement quality, no pressing, orderly arrangement and convenient cable removal, which completely solves the problems of low production efficiency and poor cable arrangement quality of the previous optical cable industry.

Cable dia	2.0~10.0mm
Cut the cable length	Lam≤990M
Appropriate weight	400kgs,5CBM
Outer diameter of reel	φ 380mm (adjustable)
Inner core of reel	φ 120mm
Reel width:	40-120mm
Winding shaft speed	0-600r / min
Power supply	220VAC 50/60Hz
Cable cutting type	drop cable, butterfly cable, self-supporting drop cable, 12 core cable
Power	2.2KW
cable send speed	cable send speed
