Standard : UL817 power cord bending test
Standard:
This testing machine complies with the provisions of UL817 and other relevant standards "General safety requirements for flexible cord components and power cords".
Application:

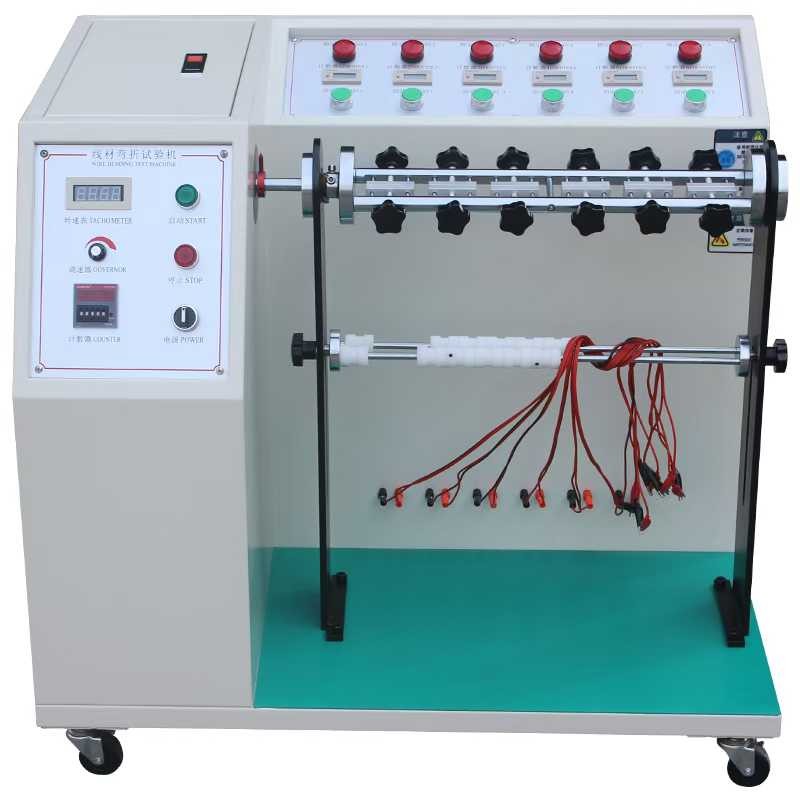

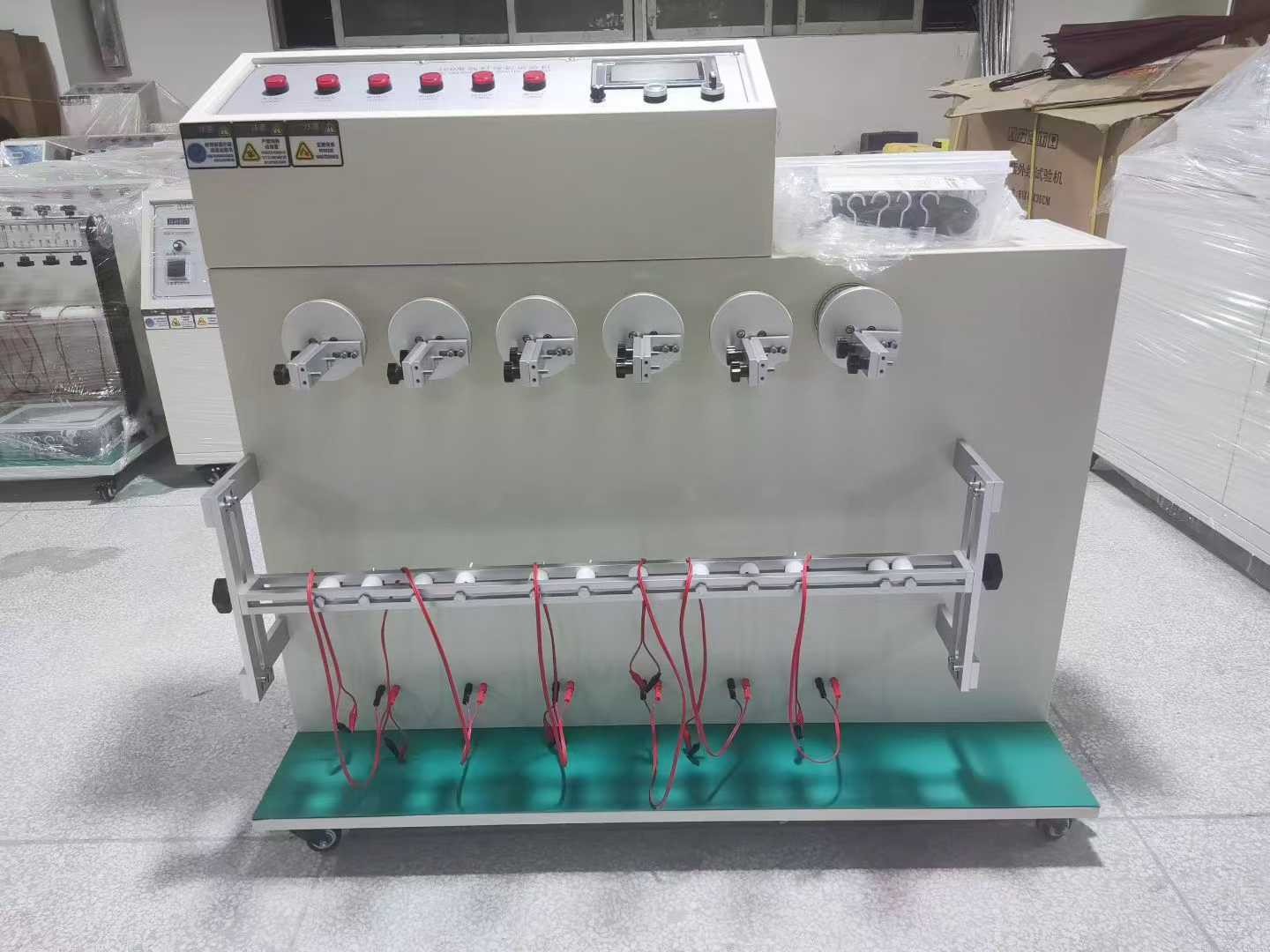

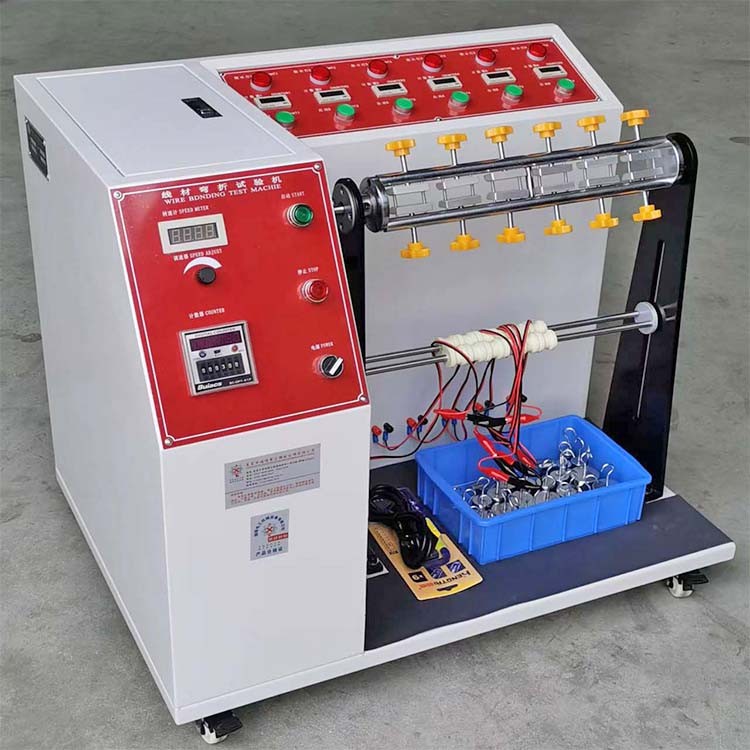

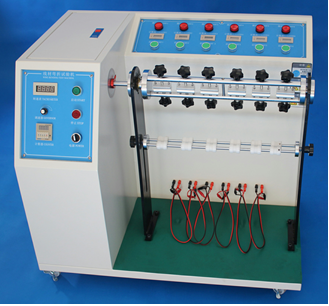

This machine is suitable for testing the bending life of finished wires such as wires, plug wires, power cords, headphone cables, and electronic wires.
Test method
Fix the sample on the fixture and add a certain load. Swing the fixture left and right. After a certain number of times, check its disconnection rate. Or when it fails to be powered on, check the total number of times and see if it can stop working automatically.
Technical parameters
No
Name
Specification
1
Test Rate
10-60 times/minute( can be adjustable )
2
Bending Angle
10° -180°(can be adjustable)
3
Workstations
Test six plug leads simultaneously
4
Test times
0-999999 (can be setting)
5
Load
6 each of 50g, 100g, 200g, 300g, and 500g
6
Voltage
AC 220V 50Hz
7
Machine size
85*60*75cm
8
Weight
about 63kg
