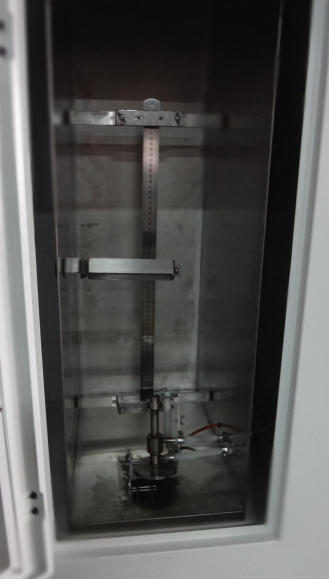

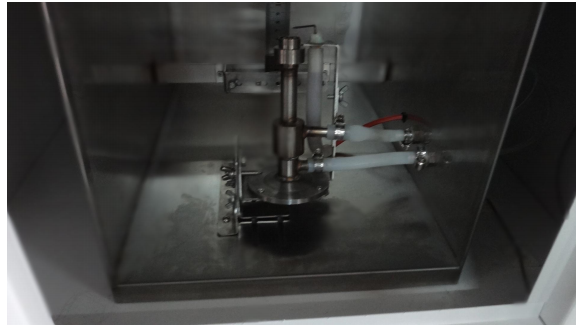

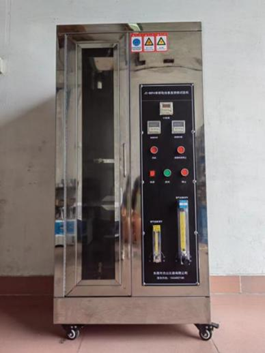

Optical cable flame retardant test machine/Vertical flammability test chamber

Optical cable flame retardant test machine/Vertical flammability test chamber

single cable flame retardant test

Application:

It is used to determine the non-spreading performance of vertical combustion of single plastic wire, control wire, cross-linking, elevator, ship, mining cable, etc. It can also be used for vertical combustion test of high self-extinguishing low-smoke halogen-free flame- retardant polyolefin insulation and 105℃ low-smoke halogen-free flame-retardant olefin irradiation insulation. This device is a device for flame resistance test of single wire and cable. The device has the advantages of high accuracy, automatic timing, automatic end of test, and easy operation.

Specification

Product model	GFK-8894
Gas	high-purity propane gas or liquefied petroleum gas (prepared by the user)
Test length	600±25mm
Test diameter	Conductor diameter greater than 0.8mm or cross-sectional area greater than 0.5mm²
Test temperature	23±10℃ (a non-ventilated environment)
Flame burning time	0.1-999.9s (can be set continuously)
Transfer switch	manual or automatic(choose one)
Gas flow range	0.1-1L/min
Air flow range	0.1-1m³/h
Material	Stainless steel
Burner standard power	1KW
Supply voltage	220V/50Hz
Vertical flame box size	3004501200mm(LWH)
