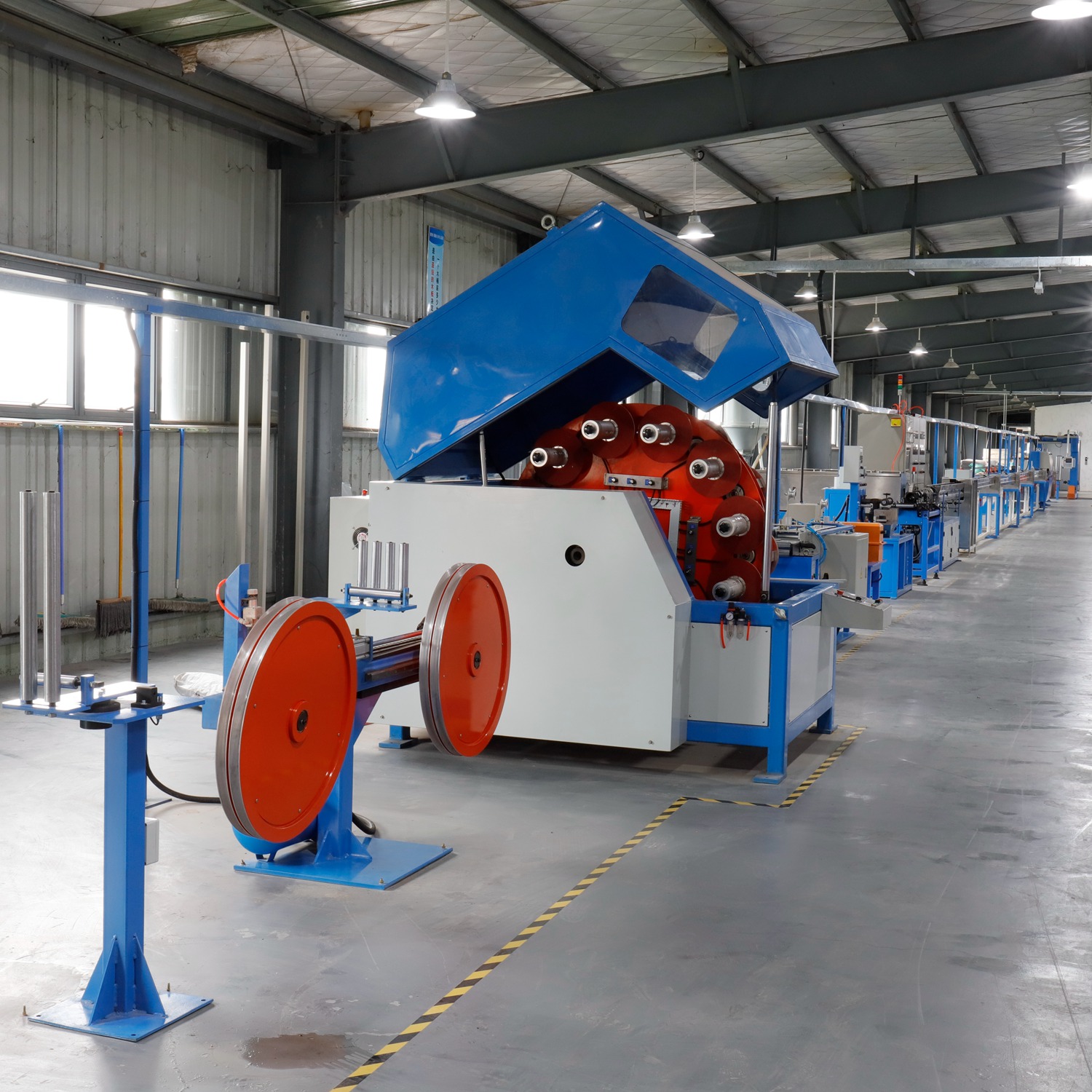

24 Heads Aramid Yarn Stranding Machine

Max dia:35mm

一、Application

The device is mainly used to make ADSS cable aramid yarn strading.

二、Specification

The winding body is used for reinforcing the aramid fiber cable with spiral twisted. It runs synchronously with the production line. The tension of aramid fiber yarn can be adjusted, and the tension is controlled by magnetic powder brake.

Equipped with independent control cabinet, electric control cabinet front door, equipped with operation button and tension display, adjustment device, can easily achieve local operation, but also remote control.

Numbers of yarns	24heads
Rotation speed	120rpm
Stranding pitch	100～500mm
Tension range	5-20N
Height of the center	1000mm
Pay-off reel dimension	Φ290×Φ94×290mm
Max.dia	Φ35mm
Motor power	7.5KW AC motor
Helical speed reduction gear	R87 i=9.05
Transducer	Danfoss
Tension control	Magnetic brake, each transmission can tension Adjust alone
Low voltage electrical	Siemens or schneider products
Stranding direction	S or Z
