Power:single phase, AC220V±10%, 50～60Hz, 1.5kW

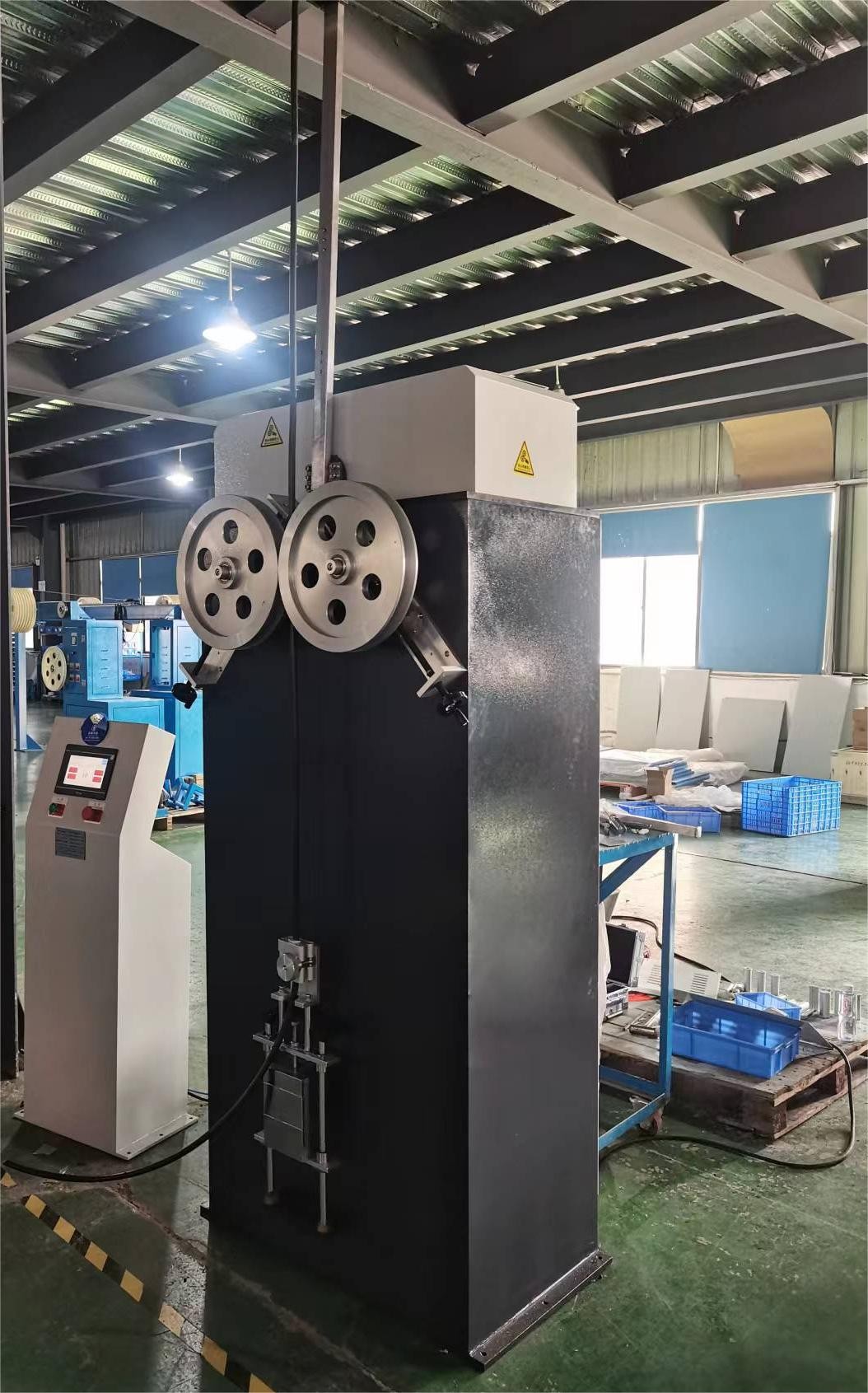

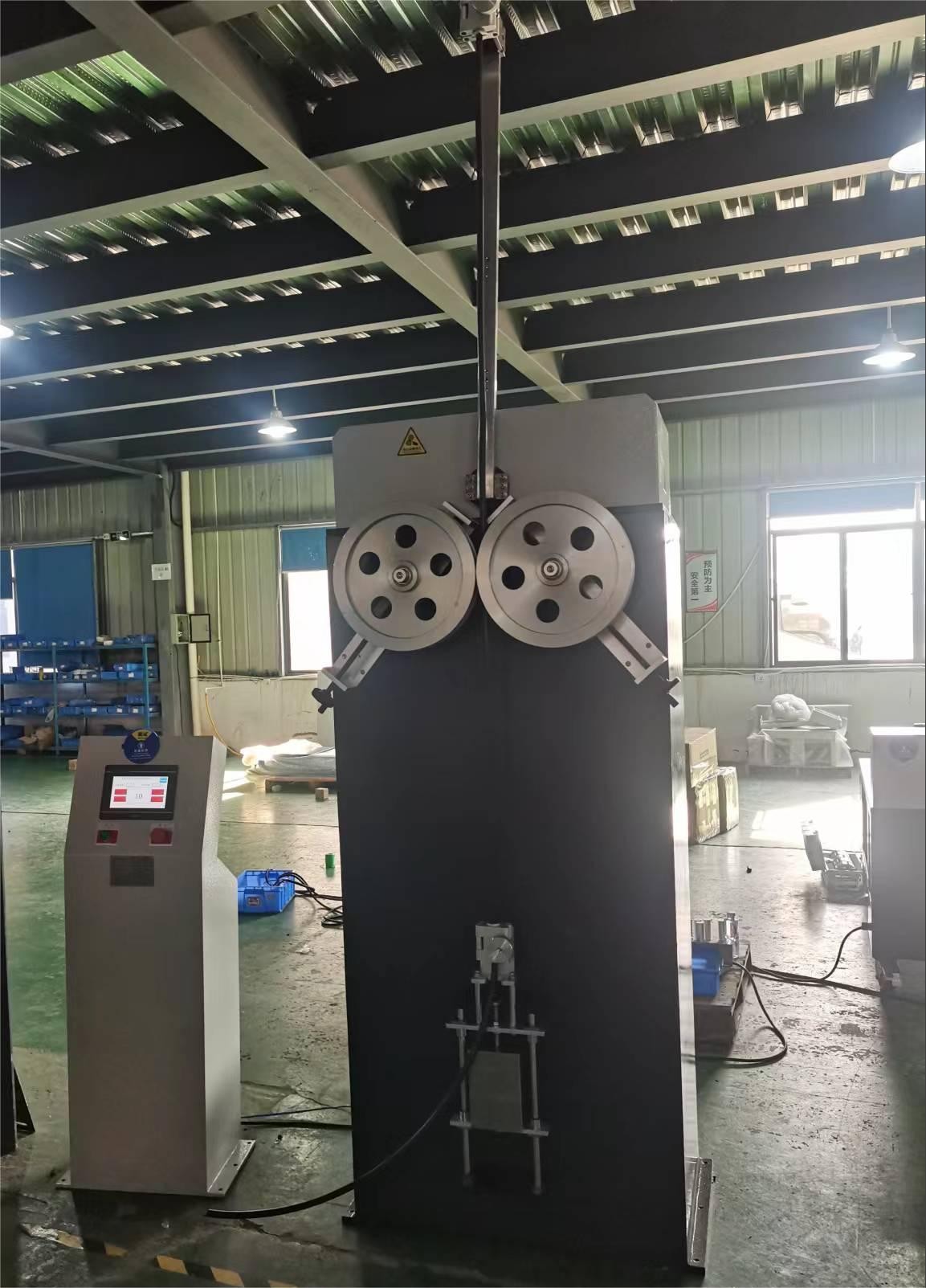

Optical Fiber Cable Repeated Bending Tester is used to determine the ability of a fiber optic cable to withstand repeated bending (cyclic flexing).
Optical Fiber Cable Impact Tester Series allows a cable sample to be bent backwards and forwards at an angle of 180° by bending extreme ends of cables at 90° in opposite directions, while the sample is subjected to a tensile load.
The bending arm is designed to hold the cable securely during the entire test, without crushing the optical fibers or inducing optical loss. The bending radius is controlled by replaceable cushioning reels, chosen to match the cable bending radius. The machine is capable of cycling at a rate of 30 cycles per minute.
| Item | spec. |
|
Product model |
GFK-90 |
|
Repeated bending angle |
±90° |
|
Repeated bending speed |
(10～30) times/min, set arbitrarily |
|
Repeated bending counts |
1~9999, set arbitrarily |
|
Counterweight bracket |
5kg |
|
Counterweight |
5kg×4,2.5kg×1,1.0kg×1 |
|
Radius of bending wheel |
75mm, 100mm and 150mm, replaceable according to testing requirements. |
|
Distance from optical cable grip to wheel tangent point |
250mm, 500mm and 1000mm, can be adjustable. |
|
Equipment weight |
About 600kg |
