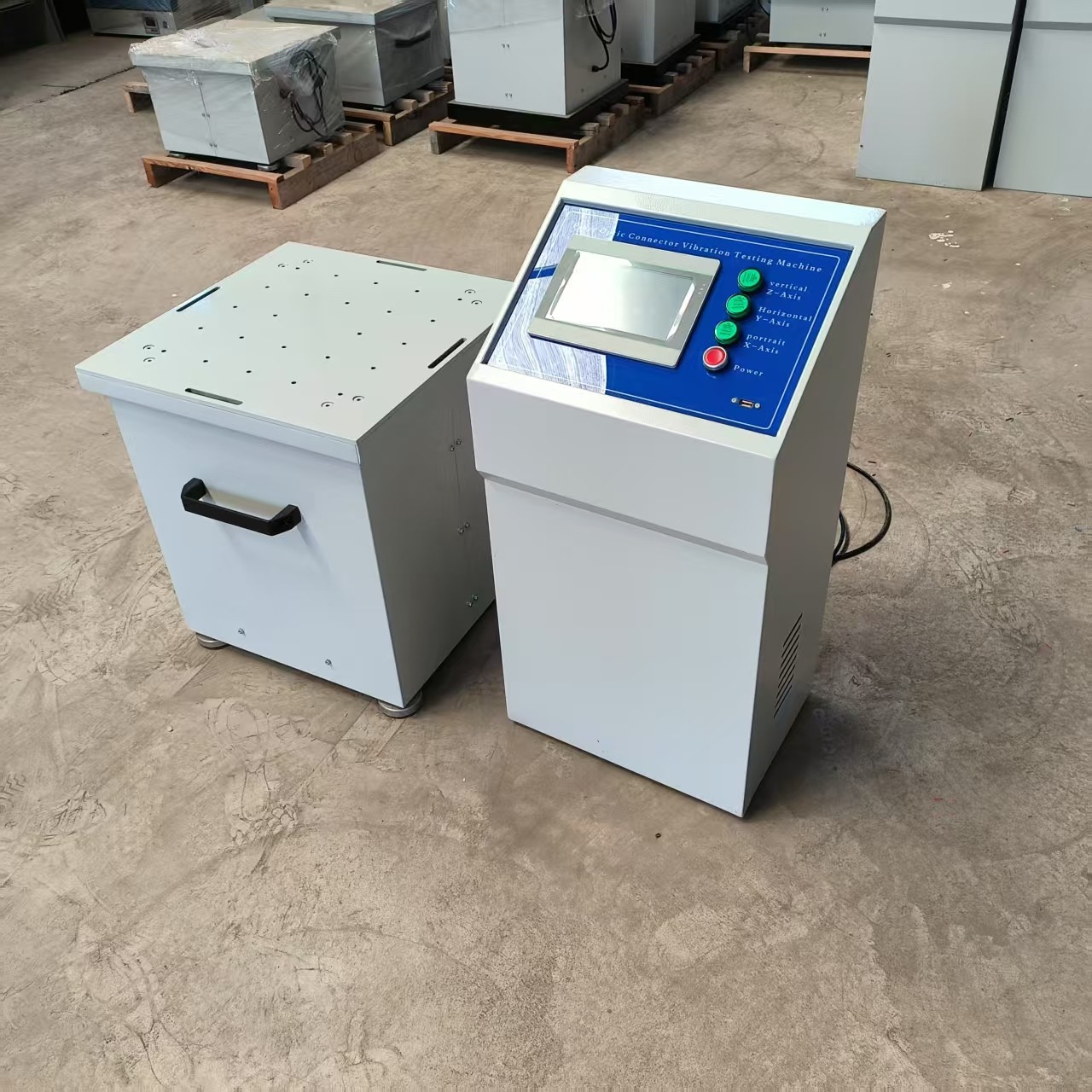

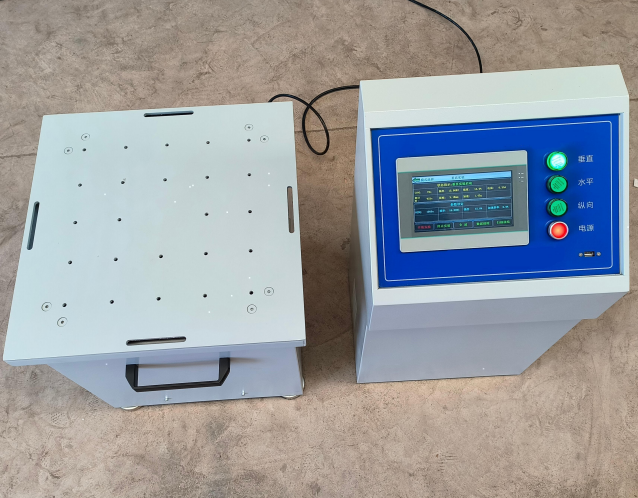

This machine is widely used in the design, development and manufacturing of optical fiber, optical cable connectors, adapters and other products in various industries. It simulates the collision and vibration of products during transportation and use, and detects the actual working conditions and structural strength of products. The control system uses a brand high-sensitivity touch-screen color LCD display, which allows direct touch options, intuitive and simple test parameter settings, and timely displays the current execution program, the current vibration frequency, and the frequency curve drawing function. It can also start multiple programs with one click.
| Item | Specification |
| Max test load | 100 kg |
| Frequency range (0.01Hz) | 10Hz ~ 500Hz |
| Amplitude | 0~5mm (adjustable range mmp-p) |
| Max acceleration | 20g |
| Vibration direction | vertical + horizontal + front and back (the fully automatic six-degree space integrated machine vibration table works on the same table top, up and down, left and right, front and back) |
| FM function | 1-60 0HZ(any frequency within the range of) |
| Sweep frequency | 1-600HZ can be set arbitrarily, true standard back and forth sweep frequency |
| Programmable function | 1-600HZ , 1-8 sections, each section can set frequency and time arbitrarily, can be cycled |
| Frequency doubling function (0.01Hz) |
①low to high frequency ②high to low frequency ③ low to high and then to low frequency / loopable |
| Logarithmic function (0.01Hz) |
① down to upper frequency ② up to lower frequency ③ down to upper and then to lower frequency - 3 modes logarithmic/loopable |
| Vibration waveform | Sine wave (half wave/full wave) |
| Time control | Any time can be set (unit: seconds) |
| Precision | Frequency can be displayed to 0.01Hz |
| Countertop size | 50*1*50cm (L*H*W ) |
| Table size | vertical + horizontal + front and back 50 * 58 * 50 cm (L*H*W) |
| Power | 220V, 3KW |
| Controller | 7-inch multi-function LCD display VT710 |
| Functions | sine wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithmic, time control |
