1. Meet the standards:
comply with the GR-326 optical fiber connector reliability requirements and the standard requirements of the test method Scope of
a. used to test optical fiber, optical fiber mechanical properties test. The insertion loss and return loss of optical cable and optical fiber under bending, twisting, tensile resistance and tail tensile test conditions are determined to judge the quality of the sample.b. This machine does bending, torsion, tensile resistance, tail tensile test
The machine is divided into four parts, the main parameters:

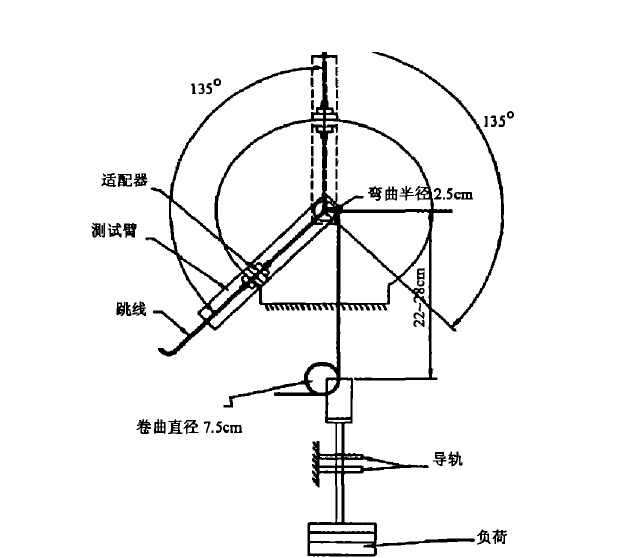

2.1 Bending test
|
Bending Angle |
-150° ~ +150° can be set arbitrarily (PLC programming control, screen display, simple and generous) |
|
Bending radius |
2.5cm |
|
Bending times |
1 ~ 9999 times can be set |
|
Load |
1.5kg(14.7N) |
2.2.Torsion test
|
Cable type |
clockwise 2.5 circles, counterclockwise 5 circles |
|
Optical fiber type |
clockwise 1.5 turns, counterclockwise 3 turns |
|
Load |
0.5kg/0.75kg/1.35kg |
2.3 Tensile test
|
0° tensile resistance |
load: 4.5kg/6.8kg (can be customized) |
|
90° tensile resistance |
load: 1.5kg/2.3kg/3.4kg (can be customized) |
|
Tensile time |
0~99 can be set |
2.4 Tail tensile test
2.4.1, according to the order of 0° ~ 90° ~ 135° swing arm
2.4.2, load: 0.25 kg / 0.5 kg / 0.7 kg / 1.5 kg / 2.0 kg (can be customized according to the requirement)
