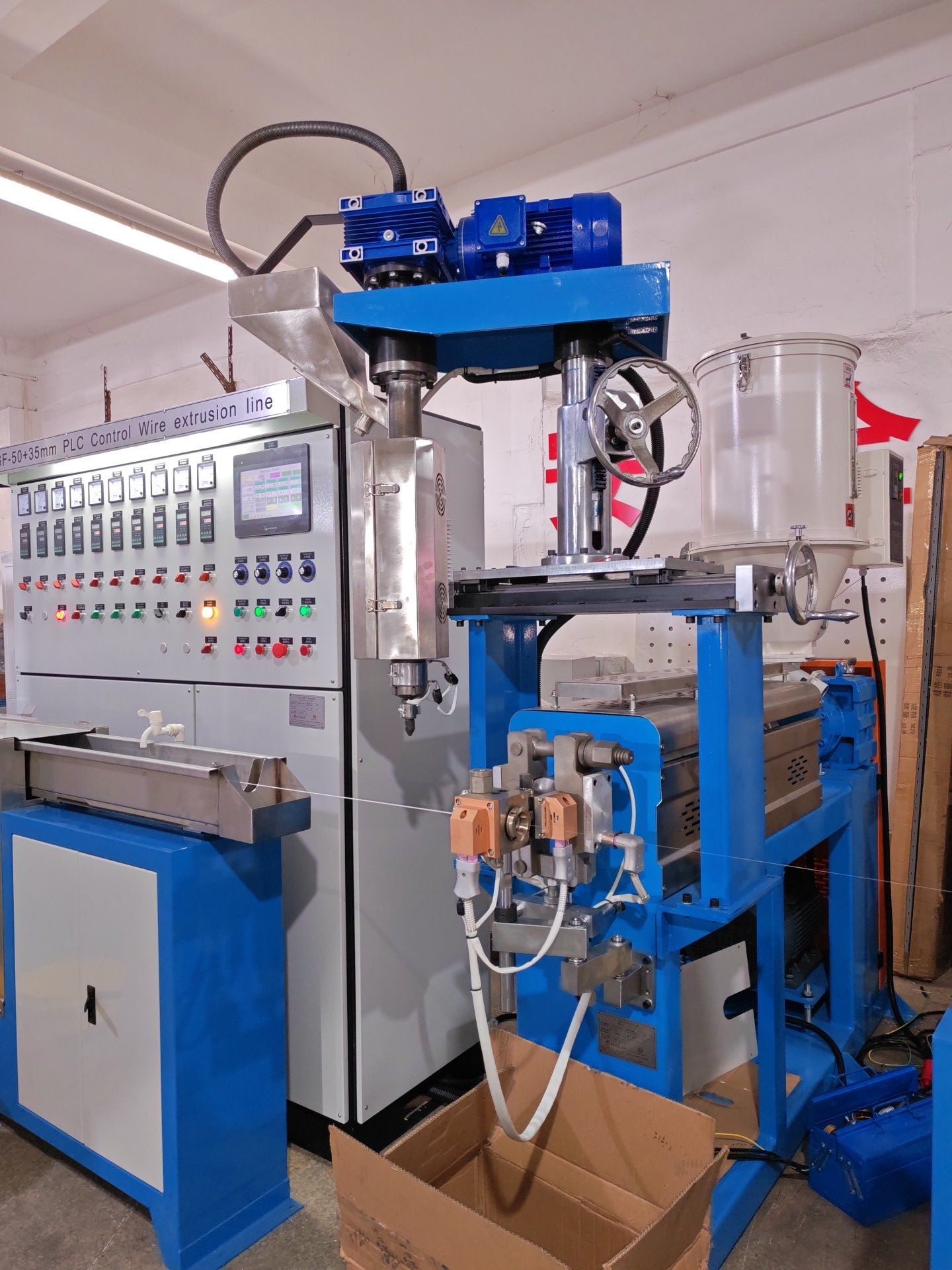

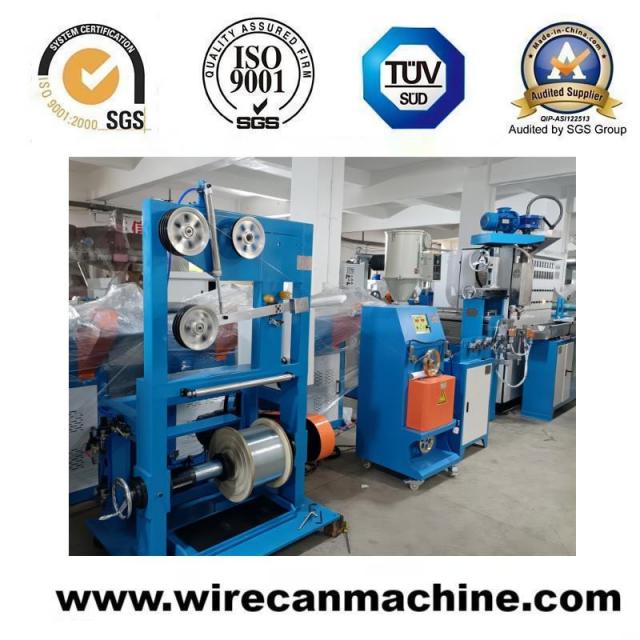

Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
| Model | GF-50+35mm | GF-60+35mm | GF-70+35mm | GF-80+40mm | GF-90+40mm |
| Pay off type | Active type single axis tension pay off | Shaftless magnetic powder tension pay off | |||
| Screw | Φ50mm | Φ60mm | Φ70mm | Φ80mm | Φ90mm |
| Screw L/D ratio | 25:1 BM type | 25:1 BM type | 25:1 BM type | 25:1 BM type | 25:1 BM type |
| Extrusion output | 70kg/hr | 100kg/hr | 150kg/hr | 200kg/hr | 250kg/hr |
| Main motor power | 11kw | 15kw | 22kw | 30kw | 45kw |
| Insulation diameter | Φ 0.6 - 4mm | Φ0.8 - 8mm | Φ1.5 - 12mm | Φ3.0-15mm | Φ3.0-15mm |
| Temperature control | 5 segment | 6 segment | 6 segment | 7 segment | 7 segment |

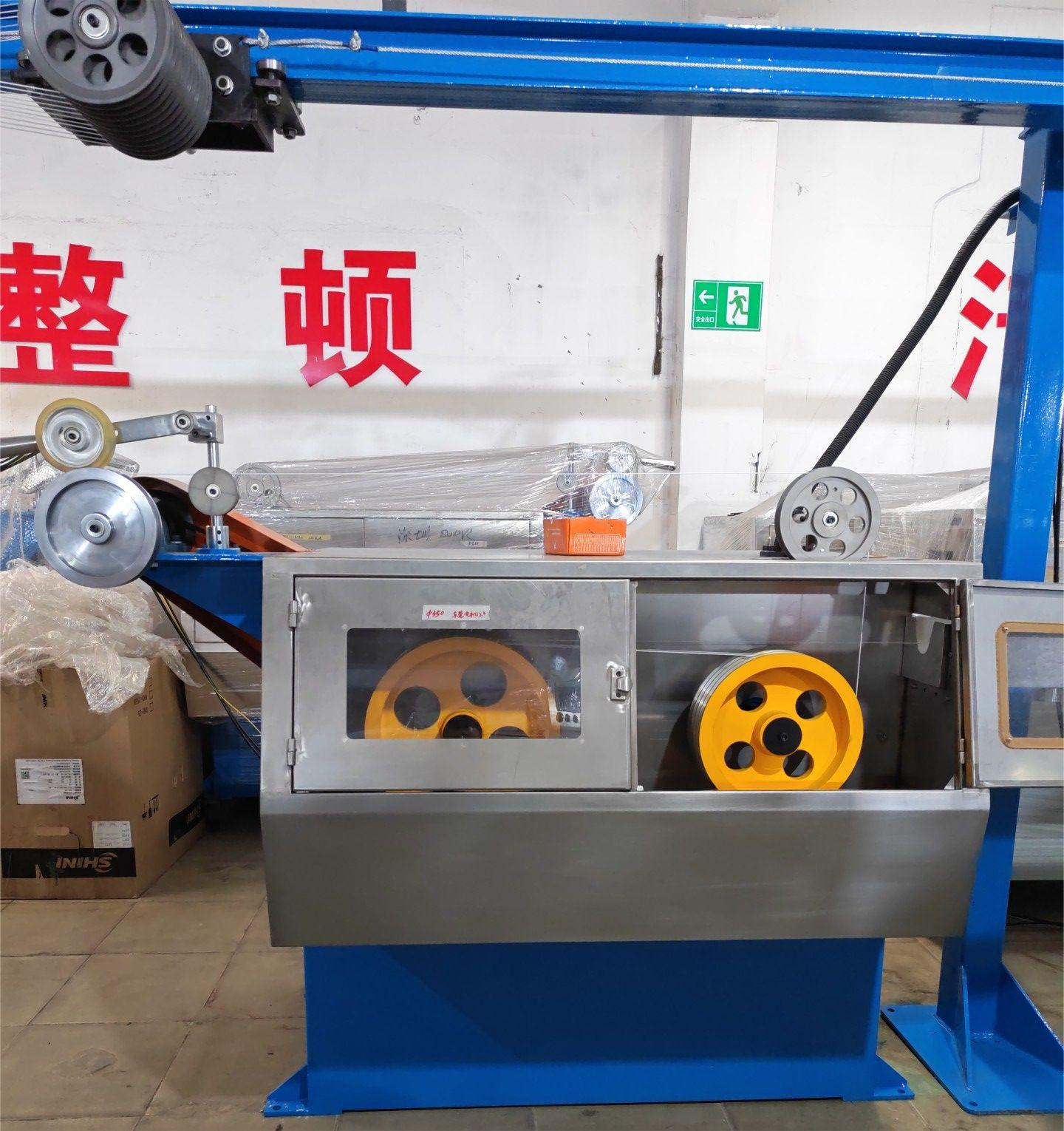

| Cooling device | Single / double layer U type | ||||
| Capstan power | 4kw | 5.5kw | 7.5kw | 11kw | 11kw |
| Accumulator length | 250m | 250m | 200m | 200m | 200m |
| Accumulator type | level way | level way | level way | level way | level way |
| Outlet wire speed | Max200m/min | Max250m/min | Max300m/min | Max300m/min | Max300m/min |
| Take up type | Double axis | No- axis double bobbin | |||
| Take up bobbin | Φ400-500mm | Φ400-500mm | Φ500-630mm | Φ800-1250mm | Φ800-1250mm |

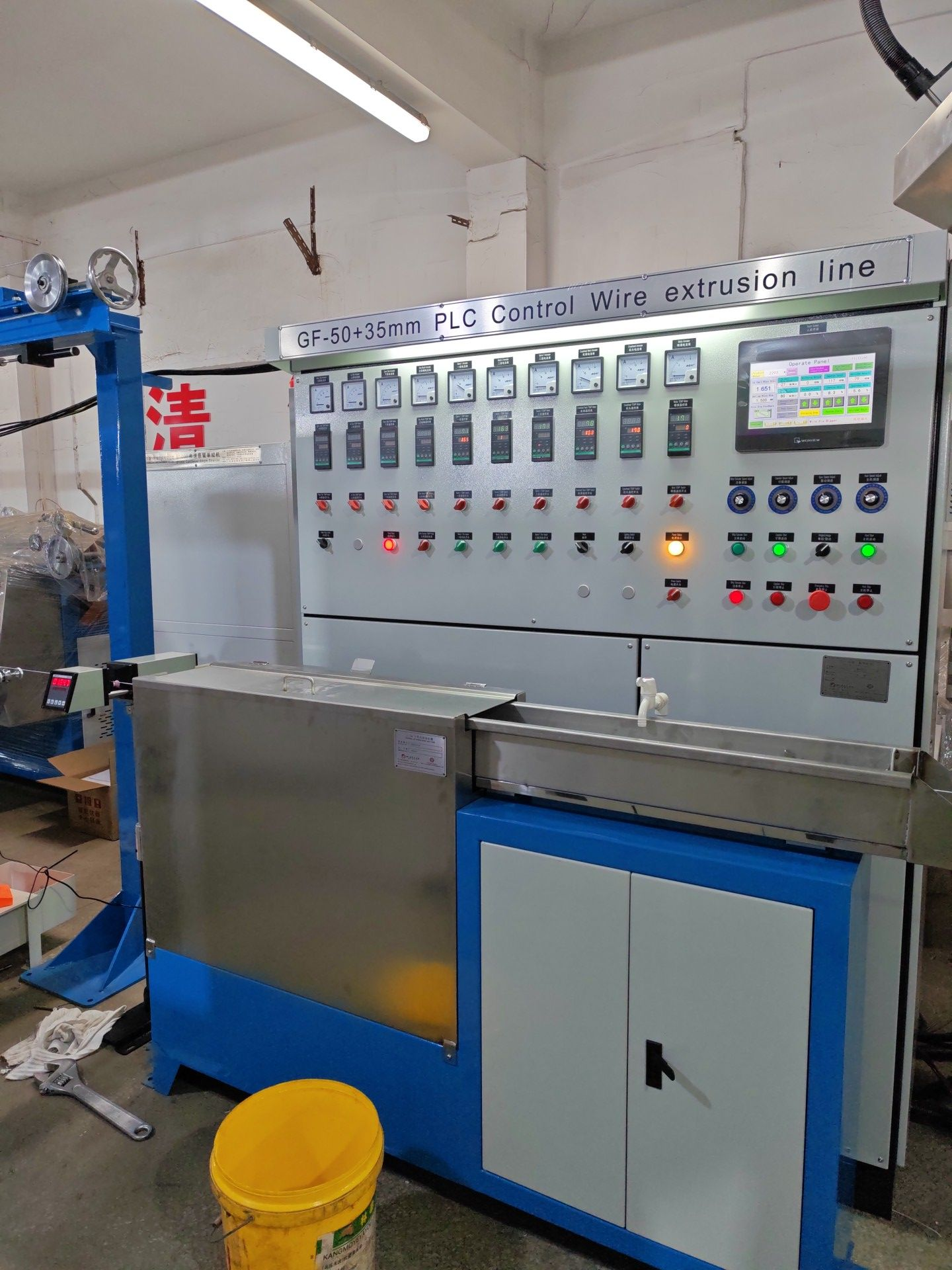

| Electrical control | Inverter + PLC ( For option) | ||||
Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes
1)Correct operating mode
2)Correct maintenance way
3)Remove simple problem of our product
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1)1year for mechanical part
2)6 month for electrical part
