finished outer diameter :0.6-4.0mm output :90kg/h line speed: Max 600m/min(according to wire diameter) Power supply:AC380V.
Be used for the production of electronic wire, car cable, core wire, net wire, power wire, and so on, in PVC, PE,PP Insulation and Jacketing material.
| machine type | WRK-65 | WRK-70 | WRK-80 | WRK-90A | WRK-90B | WRK-120 | WRK-150 | WRK-200 | ||||
| pay-off shaft | double-shaft type | 800-1600 | 1000-2000 | 1600-2500 | 1600-3150 | |||||||
| screw diameter | ø65 | ø70 | ø80 | ø90 | ø120 | ø150 | ø200 | |||||
| screw L/D | 25:01:00 | |||||||||||
| MAX. extrusion output | 130kg/h | 150kg/h | 200kg/h | 250kg/h | 280kg/h | 400kg/h | 650kg/h | 900kg/h | ||||
| motor power | 25HP | 30HP | 40HP | 50HP | 60HP | 70HP | 100HP | 150HP | ||||
| wire diameter | ø1.2-10mm | ø1.5-12mm | ø2.0-20mm | ø3.0-25mm | ø10-40mm | ø15-60mm | ø30-120mm | above ø40mm | ||||
| cooling device | single layer/double layers U type | single layer U type | ||||||||||
| haul-off power | 5HP | 7.5HP | 10HP | 15HP | 20HP | 10HP | ||||||
| MAX. line speed | 500m/min | 450m/min | 400m/min | 200m/min | 100m/min | 60m/min | 60m/min | |||||
| take-up type/power | double-shaft bundle packaging | ø1000mm-2000mm | ø1600mm-2500mm | ø1600mm-3150mm | ø2000mm-3500mm | |||||||
| No. | All parts' name | Qty |
| 1 | Pay off rack | 1set |
| 2 | Copper wire pre-heater | 1set |
| 3 | Straightener platform | 1set |
| 4 | Main motor(free-adjustable) | 1set |
| 5 | Automatic dryer and hopper | 1set |

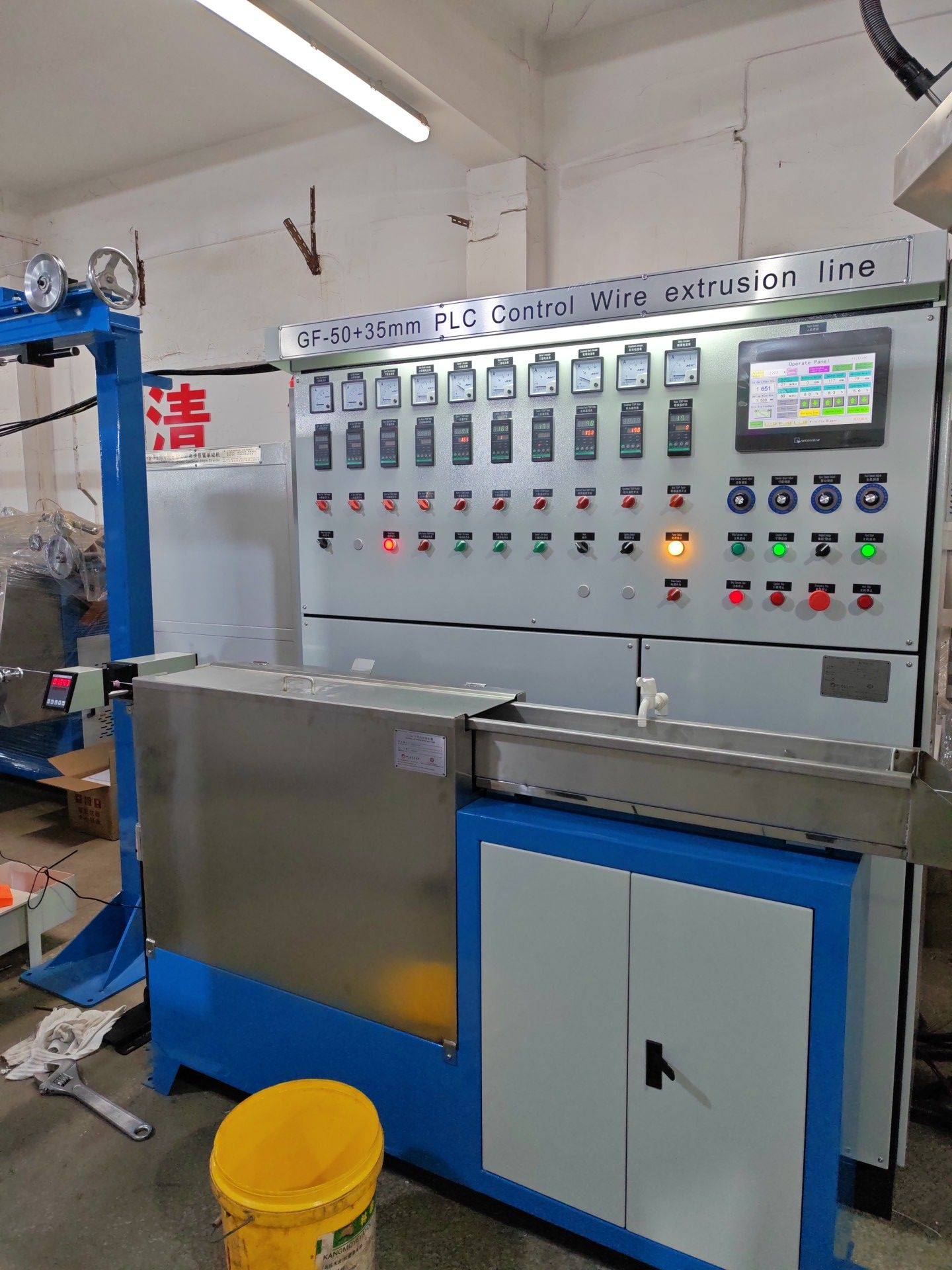

| 6 | Electric apparatus main control cabinet | 1set |
| 7 | Movable water trough | 1set |
| 8 | Laser diameter gauge | 1set |
| 9 | High speed printing machine | 1set |
| 10 | Fixed water-trough | 1set |

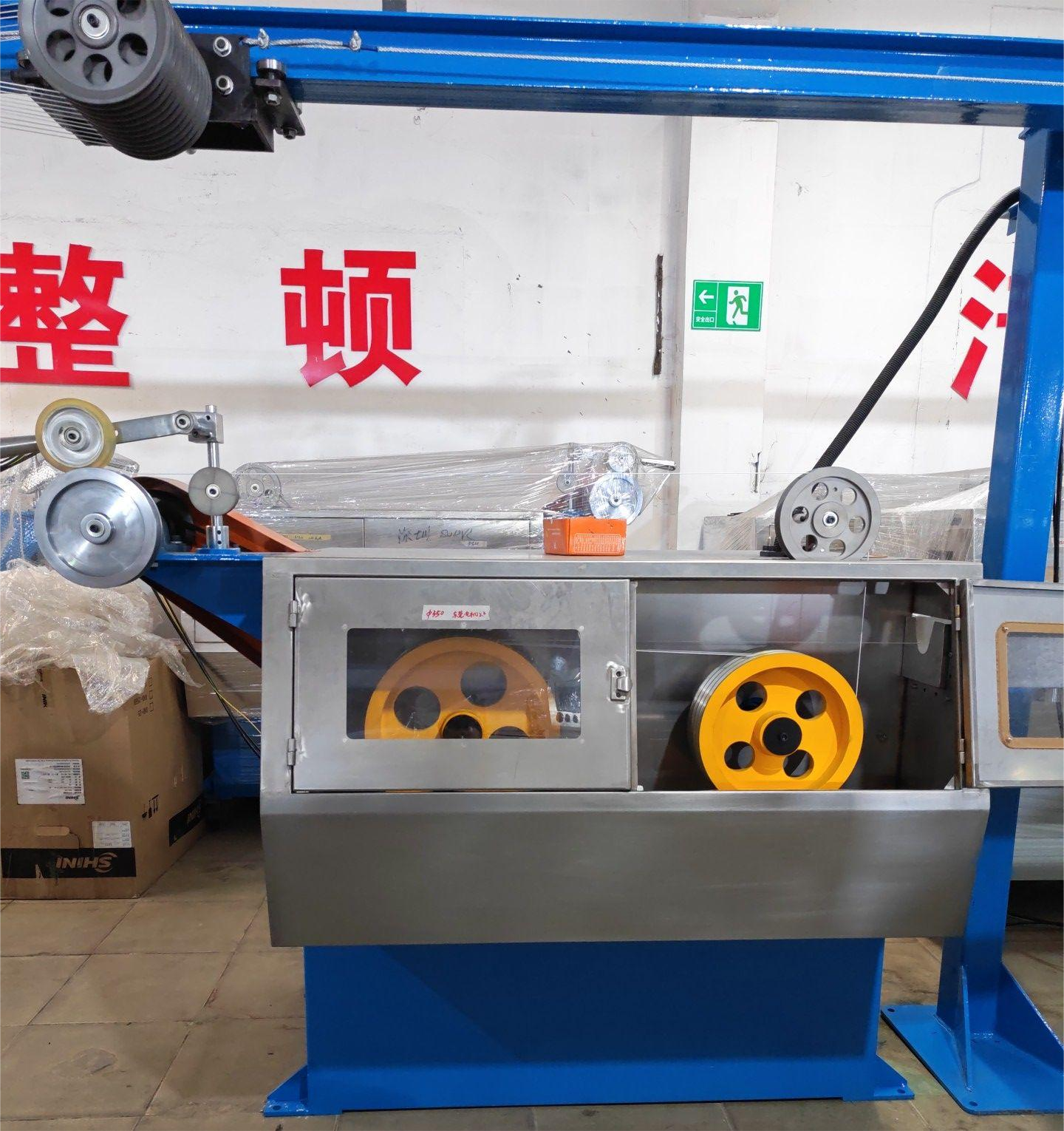

| 11 | Double-wheel capstan | 1set |
| 12 | Horizontal wire-accumulator | 1set |
| 13 | High frequency sparker | 1set |
| 14 | Double-shaft take-up machine | 1set |
