FTTH Drop Cable Extrusion production Line




1,Machine application:

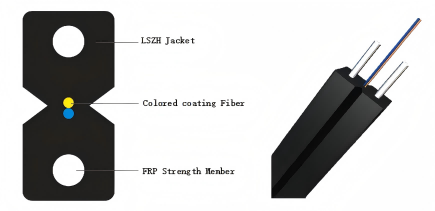

Applied in production of FTTH flat cable, the extrusion material is PVC/LSZH. The extruded sheath possesses the features of even diameter, smooth, fast speed.


2,Technical parameters of FTTH drop cable production line :

Extruder type 50×25 Extruder
extrusion material LSZH,PVC
structure speed Max.150m/min
production speed Max.100m/min(LSZH);120m/min(PVC) for 2.0*3.0mm FTTH
No of optical fiber pay-off reels 2 or 4 reels
Specification of optical fiber pay-off reels 25km and 50km standard optical fiber reels
Pay-off tension of optical fiber 0.4N-1.5N
Heads no of reinforcement pay-off rack 2 heads
Specification of reinforcement pay-off reels PN400 reels and ø254×ø116×ø180×ø32 reels
reinforcement Specification ø0.4-ø1.0
Pay-off tension of reinforcement 5N-20N
Take-up tension 5-15N
Take-up reels Specification PN400 reel and PN600 reel(central shaft hole diameter ø 56)
excess loss after extrusion 1550nm<=0.2dB/km(single mold optical fiber)
Center height of machine 1000mm from background

3. Machine main electric brand
Motor: Dongguan Motor
Transducer: shenzhen Inovance transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2 inch color
PLC and Control Module: Siemens
Screw and Barrel:  Produced by jinhu Company.
Bearing: Japan NSK or other same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON  brands,etc.
