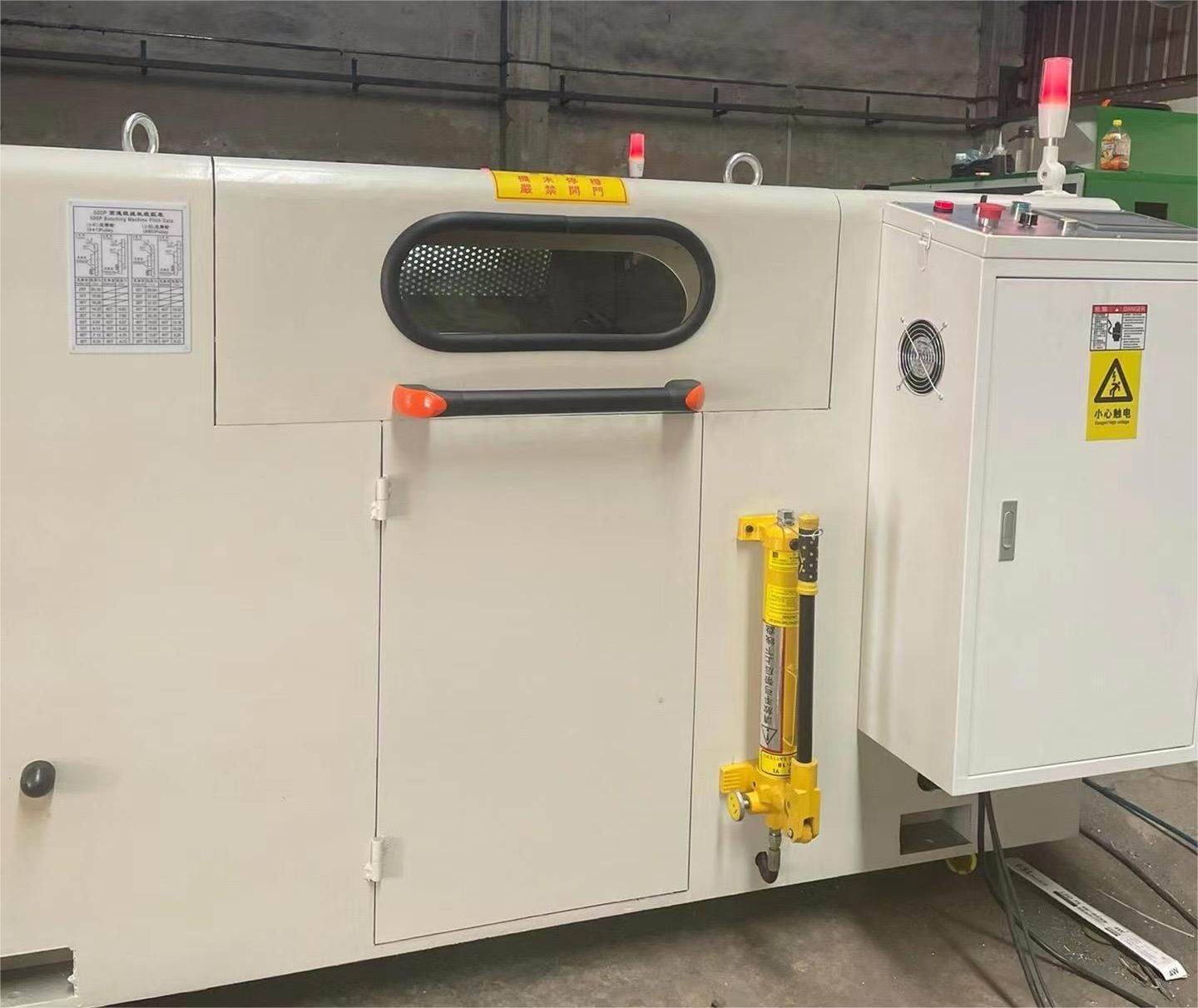

Copper wire Bunching Machine /Multi -wire twisting machine





This series machine is used for bunching bare copper, tinned wire and enameled wire, etc which mainly applicated in the wire and cable industry.

  • More stability, high production efficiency, low noise and easy to operation.

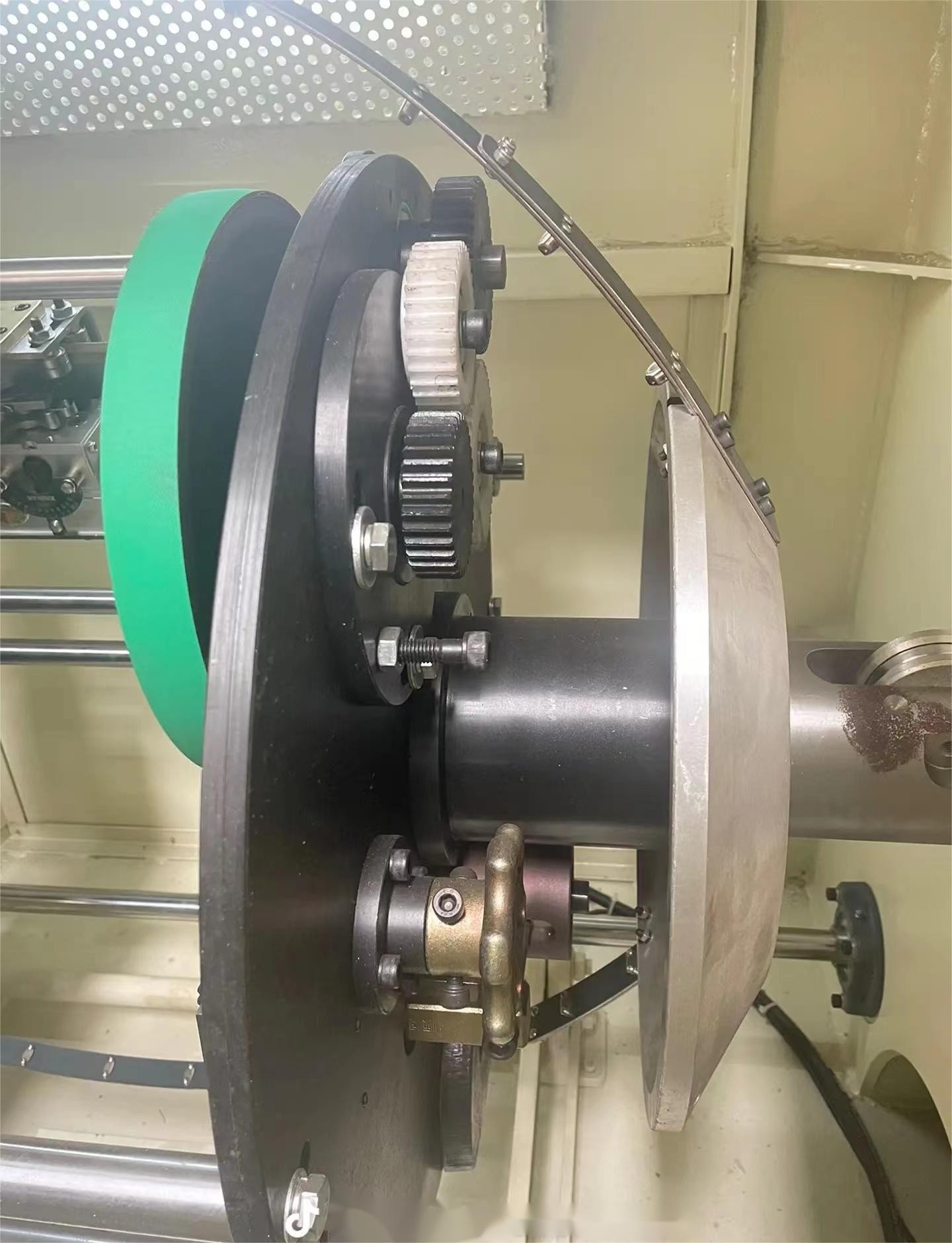

  • Spring bow can prolong the life.
  • Take-up tension is controlled by magnetic powder clutch or mechanical type.
  • If the wire breaks, the machine can stop automatically.



Model No.

300

500

650

Copper wire Dia.

0.05-0.25mm

0.10-0.45mm

0.18-1.00mm

Twisting sectional area

0.035-0.45mm2

0.05-2.50mm2

0.18-6.00mm2

Max. main shaft speed

3000rpm

3000rpm

2000rpm

Twisting pitch range

2.00-17.17mm

6.30-50.40mm

11.61-99.04mm

Traversing type

transverse and distance can be adjusted by bearing bransverse

Bobbin loading & unloading type

hydraulic type

Bobbin Dia.

300mm

500mm

630mm

Brake system

magnetic brake

Motor power

4kw

5.5kw

7.5kw

Main shaft center height

630mm

700mm

850mm

Auto stop unit

auto stop when reach setting length, and wire broken inside and outside

Operating direction

left/right hand machine
