Max finished braiding diameter:14mm
number of strands per carrier:0.25mm(1-7) 0.15mm(1-13)
0.12mm(2-13) 0.08mm(3-13)
0.05mm(4-13)

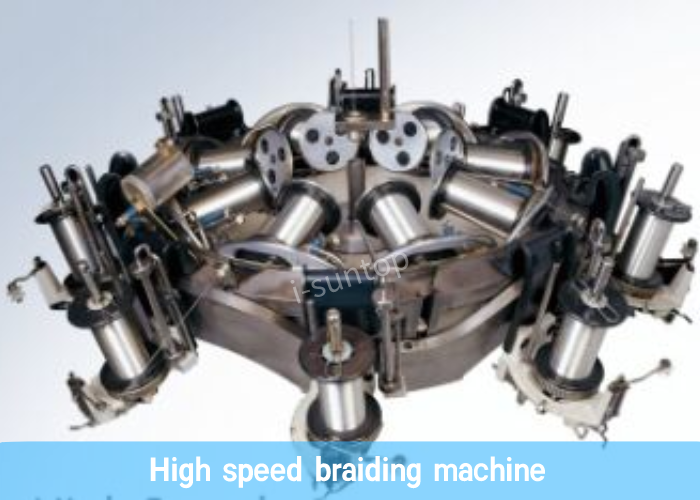

High-speed Braiding Machine offers a solution for the requirements of high-speed broadband networks for high-quality coaxial cables.
|
No. |
Item |
Unit |
Technique data |
|
|
HGSB-16A |
||||
|
1 |
Braiding type |
over |
2×2 |
|
|
2 |
Braiding direction |
|
Vertical |
|
|
3 |
upper carrier |
unit |
8 |
|
|
under carrier |
unit |
8 |
||
|
4 |
Bobbin size |
mm |
Φ75×Φ22×70 |
|
|
5 |
Carrier speed |
rpm |
50~150 frequency adjustment |
|
|
6 |
Braiding pitch |
mm |
3.2~32.5 or 6.4~65 |
|
|
7 |
Maximum core cable diameter |
mm |
Φ14 |
|
|
8 |
Maximum speed |
M/h |
585 |
|
|
9 |
Wire diameter for braiding |
mm |
0.10~0.20 |
|
|
10 |
Tension of pay-off |
N |
0.6~10 |
|
|
11 |
Pay off / Take up reel size |
mm |
Φ800×Φ400×600 |
|
|
12 |
Diameter of the vertical tape-reel |
mm |
Φ280 |
|
|
13 |
Main motor |
Type |
|
Y100L1-4 |
|
Power Frequency |
|
2.2Kw 50Hz |
||
|
Voltage Frequency |
|
380V 5A |
||
|
Rotation speed |
rpm |
1420 |
||
|
14 |
Take-up motor |
Type |
|
CH-24 |
|
Power Frequency |
|
0.2Kw 60Hz |
||
|
PREVIOUS：Column type pay off and take up for wire and cable machine NEXT：High Speed RG59 Coaxial Cable Braiding Machine
